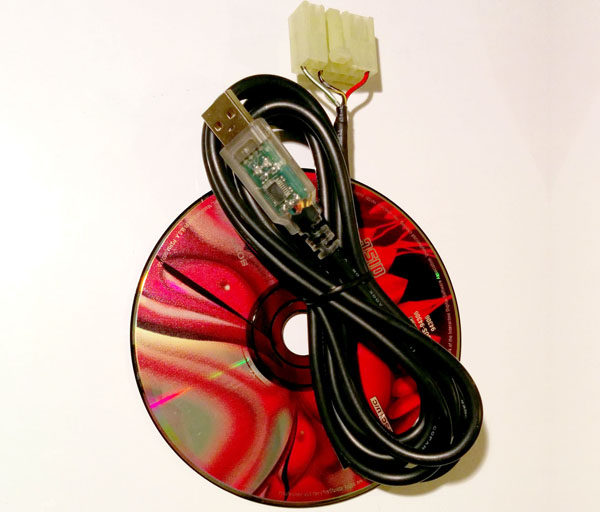

NEW USB VERSION - 1G Datalogger Kit USB / with out palm

DSM CABLES: 1G DATALOGGER KIT & TOOLS

NOW INCLUDED: TUNER LOGGER PC LOGGING SOFTWARE FOR WINDOWS®
PALM AND PC - WINDOWS® LOGGING COMPATIBILITY - USB VERSION

Enlarge
Included with kit*



Use this DSM CABLES datalogger cable to connect to your odb1 car connection. Used for specific types of cars.

Logs: RPMs, Injector Pulse Width, Knock Count,O2v, Throttle Position, Injector Duty Cycle, Timing, Coolant Temp, Air Temp,Barometric Pressure, ISC position, Low-Med-High Fuel Trims, MAF airflow, and More! Also allows you to read and clear any Check Engine Light Codes!

Compatible with 90-94 Eclipse, Talon, Laser, Galant VR4, 90-93 3000GT/Stealth, KIA, Deawoo, GM, etc... This diagnostic cable will work with any ALDL compatible ECU. These include vehicles built into the 2000's. ODBII was not standard until 1998. It was originally introduced in 1996 but most car manufacturers did not adopt the new technology. Car manufacturers outside of the USA did not have to conform with these new regulations and still produced vehicles with the older ODBI connections. The MMCD software is made specifically for Mitsubishi vehicles. The MMCD will work with KIA's and other models that were DSM motors. This diagnostic cable will work for GM, MITSUBISHI, KIA, DAEWOO, SUBURU, etc. If you are looking for an ALDL diagnostic cable and are want to use it for other vehicles besides Mitsubishi, you may need to purchase a scanning software tool. IE. For Suburu, you will need to use EVOSCAN as that is the only ALDL software that will work for Suburu.


ALDL PIN OUTS There are 3 different ALDL ODBI pin outs. General Motors implemented both a 5-pin connector and a 12-pin connector. Lotus implemented a 10-pin connector. Mitsubishi (Dodge) uses the 12 PIN. The pinouts are included with the README file included when this item is purchased.

CD included!
Software containing the free MMcd (Windows Palm Emulator XP/W7/W8/32+64bit), and Tuner Logger(WINDOW XP) logging programs. TUNER LOGGER PC LOGGING SOFTWARE FOR WINDOWS® - Requires OS to be 32bit XP. Will work in a Virtual Machine. MMCD will work on the Palm Emulator with any Windows OS (XP, W7, 32&64bit). DSM OBD-I Data logger cable.

DSM OBD-I Datalogger cable.



Ready to connect up to your pc. Easy how-to instructions. USB communications port.

High quality cable and components for long life.

ALL CABLES ARE TESTED 100% WORKING 100% BRAND NEW BY DSM CABLES


ODB-1 Cable and software only. Works with TunerPro RT, Palm Emulator/MMCD, TMO, Tuner Pro, and EvoScan. We include MMCD and Tuner Logger.



The purchase of a 1G kit includes:

1. DSM Datalogger cable (USB) and software only

1/1/2018 - Out of stock - No Longer Available
